Reliable protection for corners and edges
So your cargo doesn’t rub
For all angular or round packing units, edge protectors offer effective protection from damage during transport.
They are perfectly suited for angular bottle crates. Simply fix to the edges of the cargo and the journey will be significantly safer.
In load safety, edge protectors are an important tool for protecting the cargo from the forces involved in lashing down or for interconnecting several units of cargo in order to then be able to use a single lashing device.

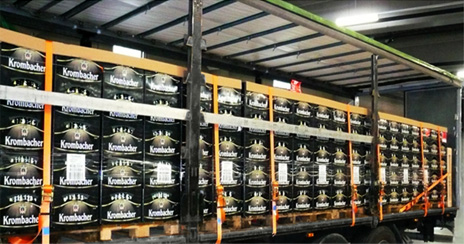

One-way load securing of bottle crates with MULTi-Cargo edge protectors liquid
- Perfect load safety of stacked drinks crates
- No slipping sideways or toppling of units of cargo
- The number of necessary lashing straps can be reduced from 32 to 12
- Massive timesaver during loading and unloading
- Simple disposal via waste paper cycle
Specification “High Strength Edge Protector” (according to TÜV-Nord requirements)
For load securing of beer or bottle crates the following specification was approved by TÜV-Nord:
- Leg length 100 x 100 mm
- Wall thickness 9 mm
- Length 2400 mm (for example beer or bottle crates 800 – 2400 mm)
- Withstands at least 5000 N (three point bending flexural test according to DIN EN 13393)
TÜV-Loading recommendation
For bottle crates: TÜV certification: Certificate number: LS 0909755Z1
